Home or Away Substitutions graphic

'

Caveat: You need to have Template Editor permissions. It may be sensible when naming new hooks, new templates or new template sets to add "TRAINING" as part of the name, to differentiate your work from ''live'' production work. Do consider any ''Delete'' actions carefully - is it your work you are deleting?

Substitutions Graphic

Requirement

The ability to choose in the Web Client''s ''Edit'' pane, whether to generate a graphic for the ''home'' team or the ''away'' team (in this case the ''away'' team) and to then choose to show the number of substitutions as 1, 2 or 3, depending on the data available.

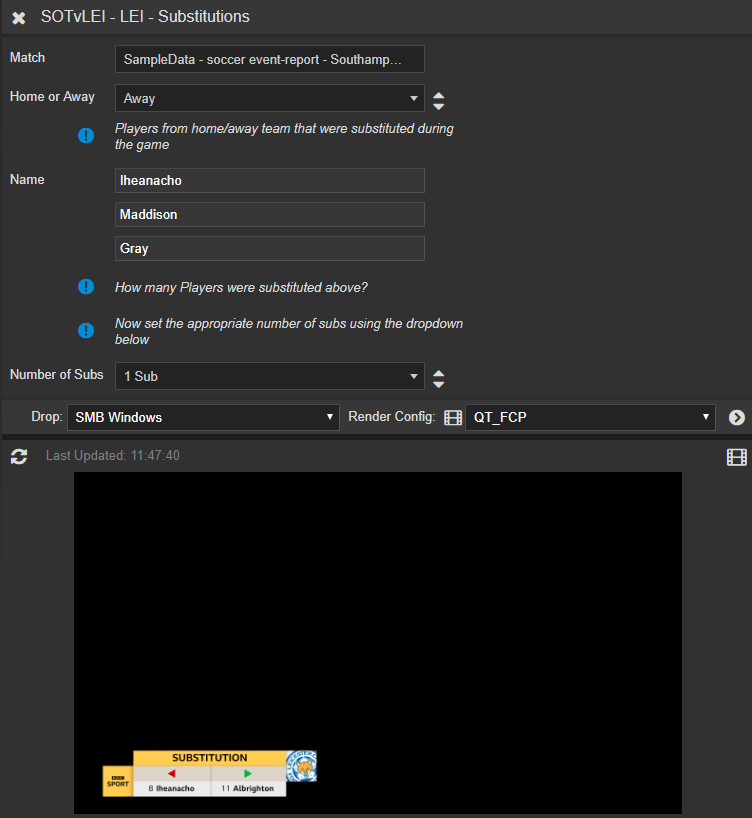

The below image shows the Web Client view of the template in use.

'

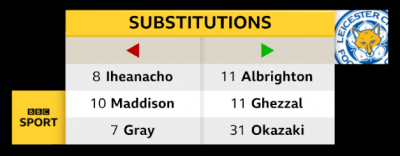

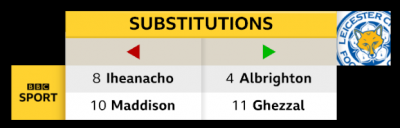

The below images are the graphic in its three states:

Prerequisites

Prior to beginning this article, the user should be familiar with selecting a schema and creating hooks. Also to have completed the following article:

• Single Substitution graphic


You should also have the 'Scorelines' image set.

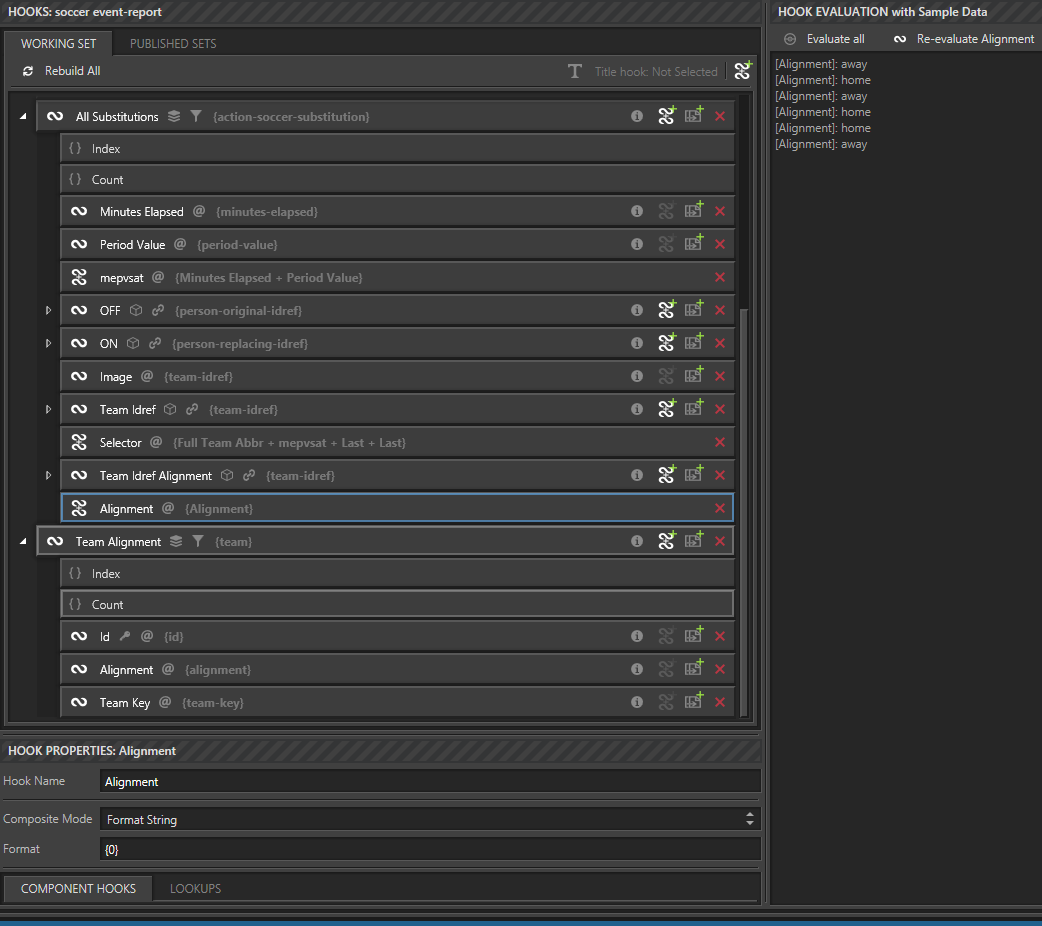

Creating the Hooks

Using Ignition Post Win Client as a Template Editor.

1. Select the main tab DATA


2. Select the sub-tab SCHEMAS & HOOKS


3. Below SCHEMAS:


1. Data Provider: XMLTeam


2. Target: Production


3. Schema: soccer event-report


4. Sample Data: Southampton v Leicester City

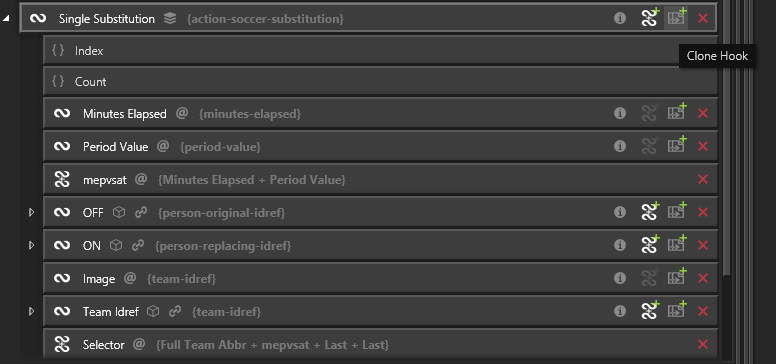

4. Clone the parent hook 'Single Substitution'


1. Rename: All Substitutions


1. Rename: Team Alignment


2. Add a constraint using: team.team-metadata.alignment, using = "*" (Text)


1. Id


2. Alignment


3. Team Key


1. Set the 'List Key' to: Id


1. Add a constraint using: action-soccer-substitution.team-idref, using = * (Text)


1. team idref

2. Rename: Team Idref Alignment


3. Reference: Team Alignment


4. Click 'Create Hooks'


1. Rename: Alignment


2. Composite Mode: Format String


3. Format: {0}


4. Component Hook: All Substitutions.Team Idref Alignment.Alignment


1. Add 'List Transforms' as follows:


2. Order by: Full Team (Ascending & Alphabetical)


3. Change the order of 'List Transforms' so the above is first and the below is second:


4. Order by: Minutes Elapsed (Ascending & Numerical)


Adding a scene

1. Select the main tab TEMPLATES


2. Ensure the template set 'TRAINING Match' is selected (above 'Search Templates')


3. Click 'Add new Template to TRAINING Match'


1. Rename: 'Substitutions'

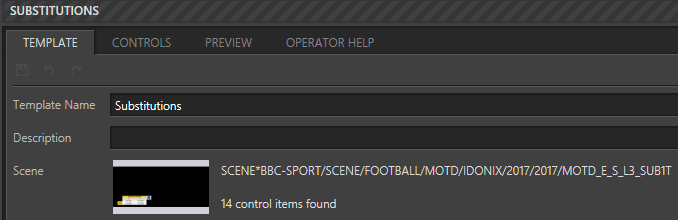

4. Click the 'Select' button adjacent to 'Scene'


A sub-pane to the right-hand side is populated as follows:

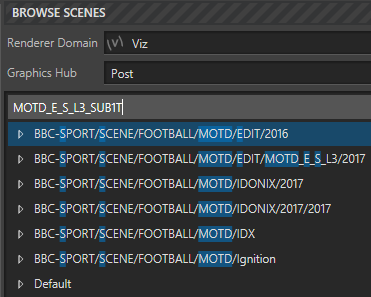

BROWSE SCENES

With:

Renderer Domain
Graphics Hub


And a list of your available scenes below 'Search'

1. Ensure 'Renderer Domain = Viz


2. Ensure Graphics Hub = Post --- (Or the name of what is pointing at your available Viz Scenes)


3. Type the following into the 'Search' bar: MOTD_E_S_L3_SUB1T


1. Click 'Refresh Thumbnail and Scene Controls'


2. Click 'Click button to make this the current main scene'


Adding templates controls

1. Select the sub-tab CONTROLS, add a 'Data Selector' control


1. Rename the Label: 'Match'


2. Select the Schema: 'soccer event-report'


2. Add a 'Data Item' control

1. Choose the 'Schedule Condition Hooks.Event Name Abbr' hook


2. Click the greyed out 'title' on the control -- it turns 'green'



This sets the Title of the Graphic to the data returned from the control



3. Add a 'Data Filter List Option' control


1. Change Label to: 'Home or Away'.


2. Set the 'List Hook' as: 'All Substitutions'


3. Set the 'Filter Value as: 'All Substitutions.Alignment'


4. Change the 'Descriptions' to:


5. Home

6. Away

7. Change the Filter Values' to:


8. home

9. away

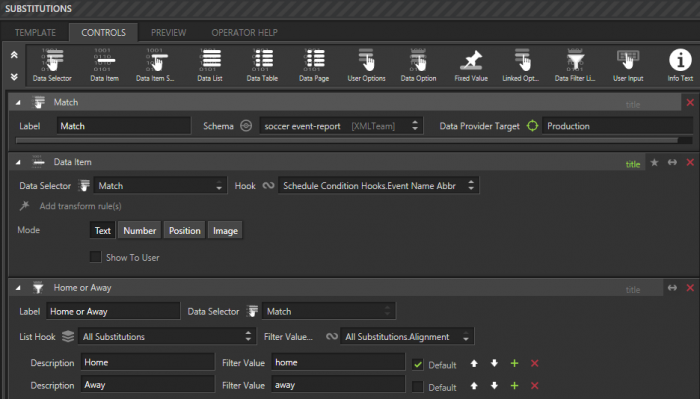

The below image shows the three template controls so far:

1. Add an 'Info Text' control


1. Add the following into the text field: Players from home/away team that were substituted during the game


2. Using the 'Data List' button create x4 new controls


1. Change the 'List Size' = 3


3. Taking each of the four new template controls, in turn, bind a Viz Control as follows:


1. Text 100 HS1_OFF_NUM


2. Text 101 HS1_OFF_NAME


3. Text 200 HS1_ON_NUM


4. Text 201 HS1_ON_NAME

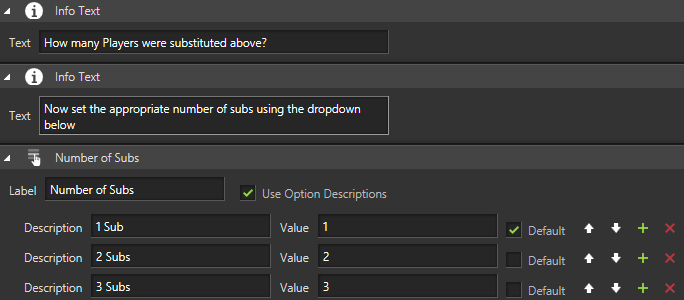

4. Add an 'Info Text' control


1. Add the following into the text field: How many Players were substituted above?


5. Add an 'Info Text' control


1. Add the following into the text field: Now set the appropriate number of subs using the dropdown below


6. Add a 'User Options' control


1. Bind to: Integer 6000 NUMBER_OF_SUBS


2. Change the 'Label' to: Number of Subs


3. Click 'Add new option after this'


4. Change the 'Descriptions' to:


5. 1 Sub


6. 2 Subs


7. 3 Subs


8. Change the 'Filter Values' to:


9. 1


10. 2


11. 3


1. Data Selector: 'Home or Away'


2. Hook = All Substitutions.Image


3. Bind to: Image 0003 LOGO


4. Set the 'Image Set' to: Scorelines


1. Data Selector: 'Home or Away'


2. Hook = All Substitutions.Team Idref.Full Team Abbr


3. Click the greyed out 'title' on the control -- it turns 'green'

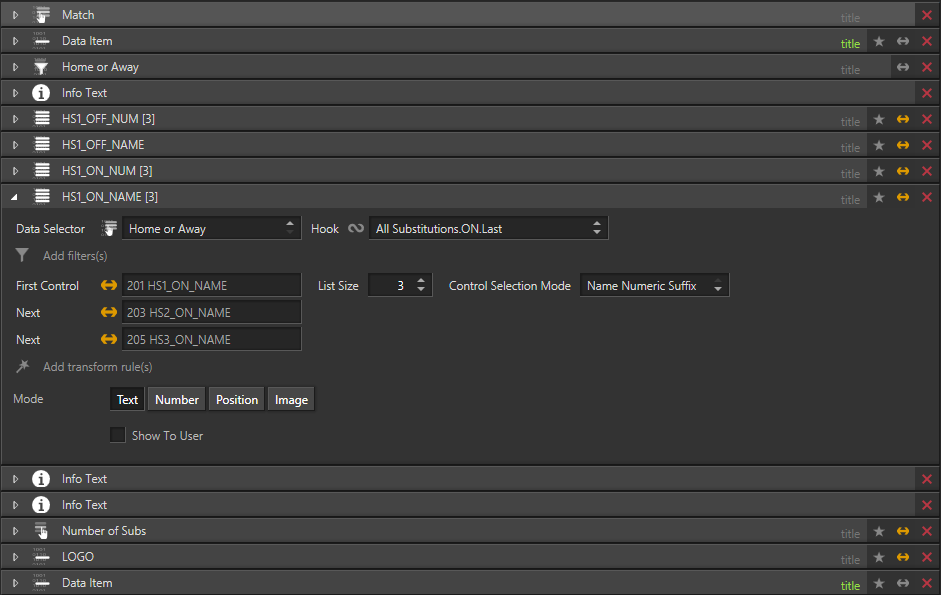

You now need to give each of the four list template controls a hook.

1. HS1_OFF_NUM


1. Change the Data Selector to: Home or Away


2. Change Hook to: 'All Substitutions.OFF.Uniform Number


2. HS1_OFF_NAME


1. Change the Data Selector to: Home or Away


2. Change Hook to: 'All Substitutions.OFF.Last


3. TICK 'Show To User'


4. Rename: Off Name


3. HS1_ON_NUM


1. Change the Data Selector to: Home or Away


2. Change Hook to: 'All Substitutions.ON.Uniform Number


4. HS1_ON_NAME


1. Change the Data Selector to: Home or Away


2. Change Hook to: 'All Substitutions.ON.Last


Using the graphic

Using the Web Client to view your new template. Remember to Login as a Template Editor, as the template is not yet published.

1. Select the 'TRAINING Match' set


2. Using the 'Southampton v Leicester City' sample data

3. Select the 'Substitutions' template


4. Leave the 'Home or Away' selector on 'Home' (i.e. Southampton)



In the 'Edit' pane you will note there are three names: Ings, Elyounoussi & Long. Therefore, you need to set the appropriate number of subs - i.e. 3.



5. Change the 'Number of Subs' selector from '1 Sub' to; '3 Subs'

You now have the ability to set the number of substitutions to match those made by either the home or the away team.

Remember, if during a match, you only want to show the substitution as it is made, rather than all of the substitutions made during the match, you will need to use the selector available in the 'Single Sub' graphic. Using:

Single Substitution graphic
